Arising Industries Trailers       natm badge


Arising Industries produces the most innovatively designed enclosed race car trailers, enclosed cargo trailers, enclosed motorcycle trailers and enclosed concession trailers on the market.  Their goal is not to be the  biggest, but to be one of the best.  Arising's mission statement is simple: "Just do the right thing".  Look at the features below to see how truly amazing these trailers are.

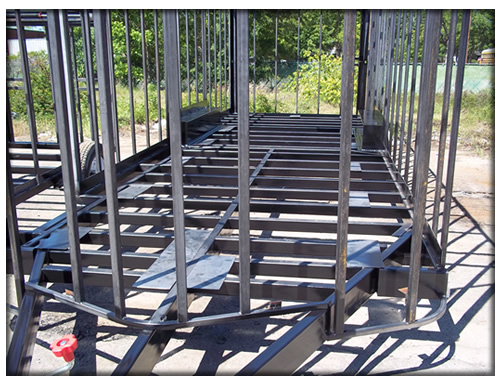

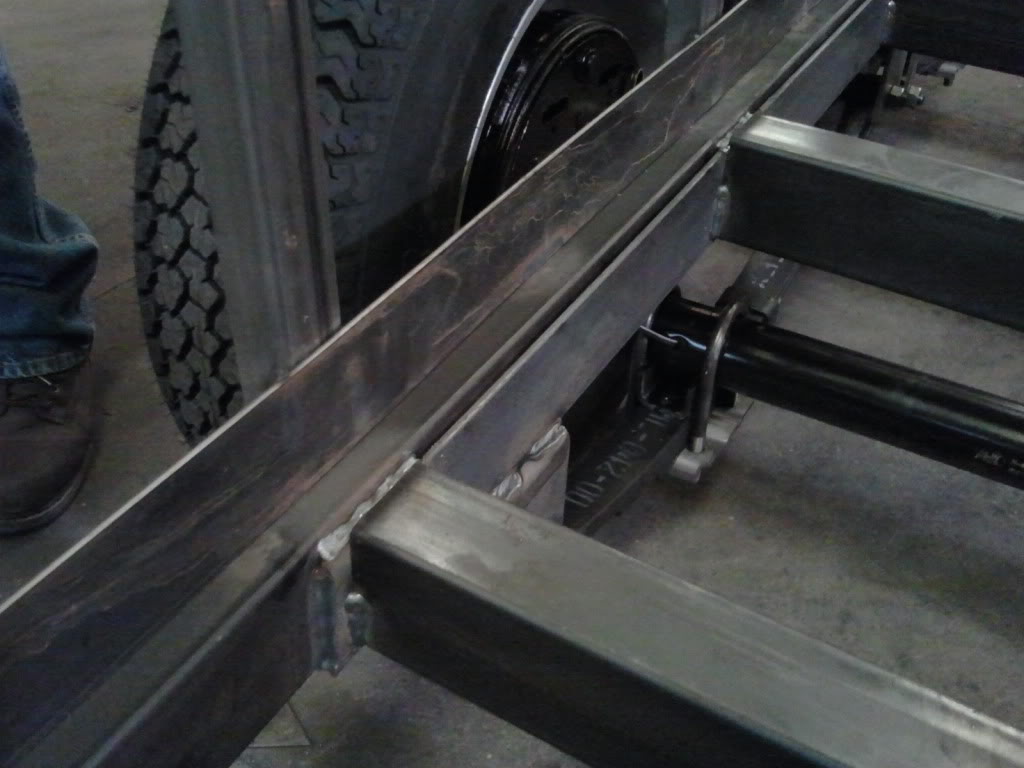

  • FULL tubular steel frames -  the only trailer on the market that does not need the sidewall plywood in it for strength

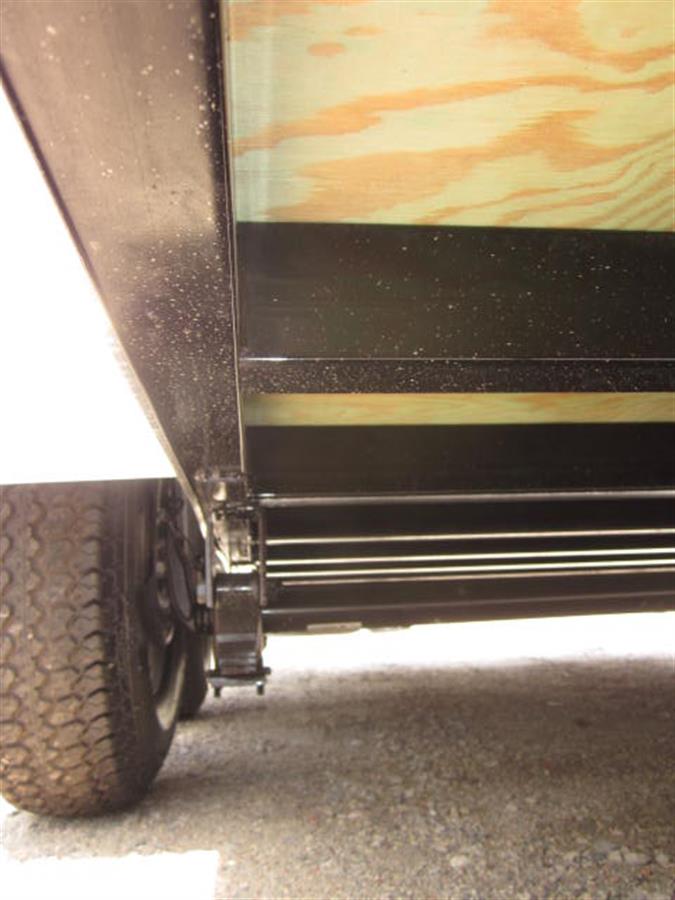

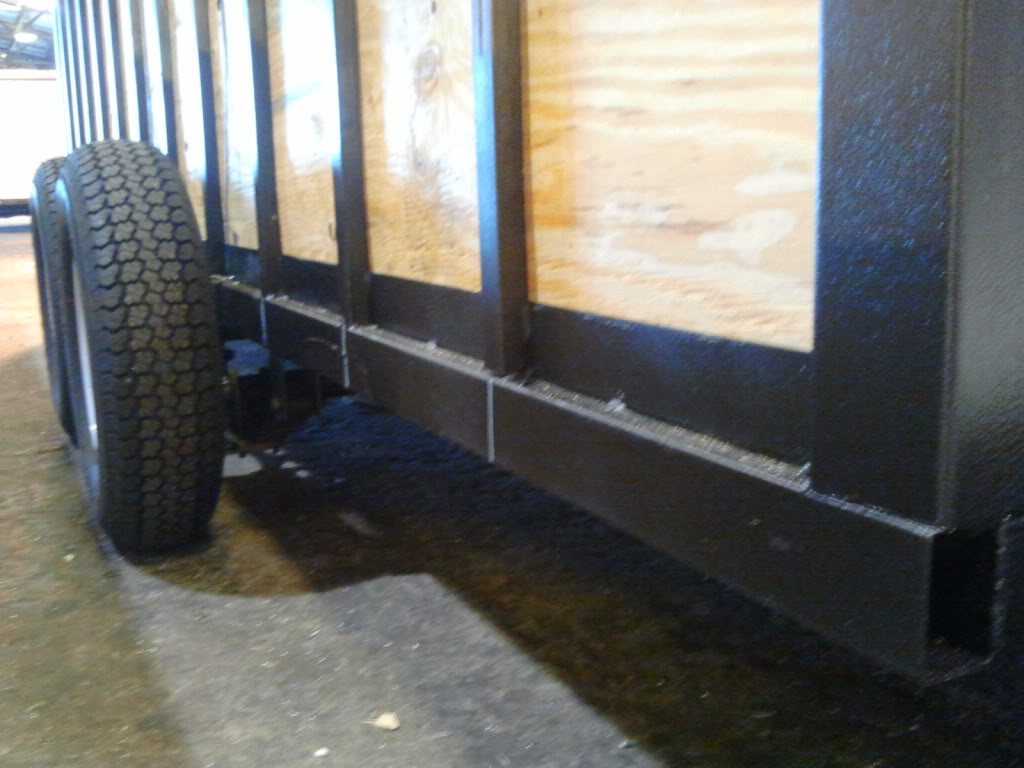

  • True  PERIMETER frame with a flat steel backer plate on top for the wall to sit on - eliminates weak outriggers, flimsy walls and dust being sucked into trailer
  • Low profile flat floor car trailer frames - eliminates weak internal beavertail section and side door stepwells
  • Jig built roof assembly that is welded to the sidewalls - roof is wrapped over sides and capped eliminating leaks from      excessive fasteners
  • Crush resistant front wall construction

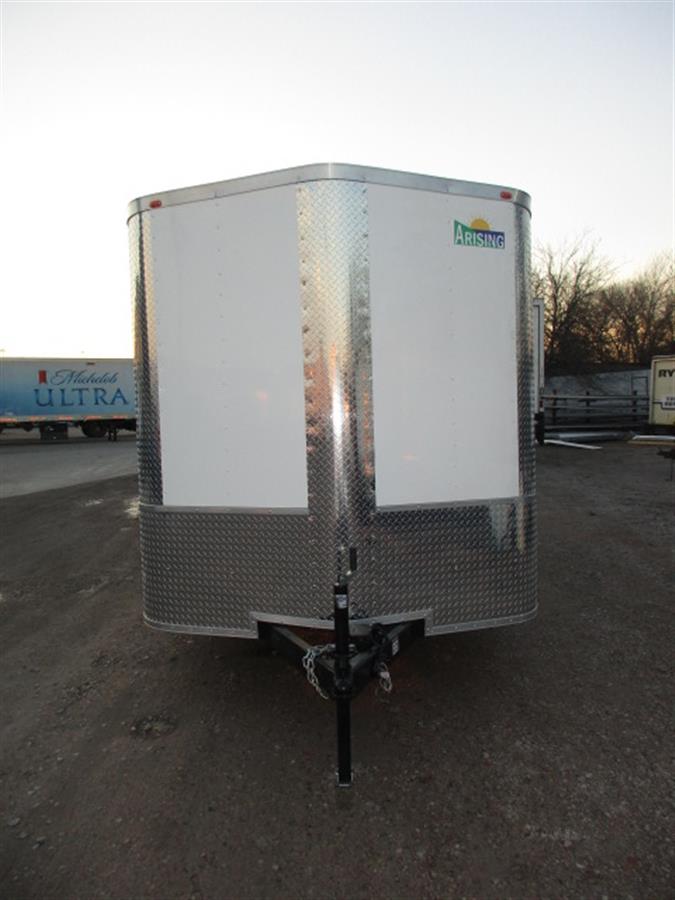

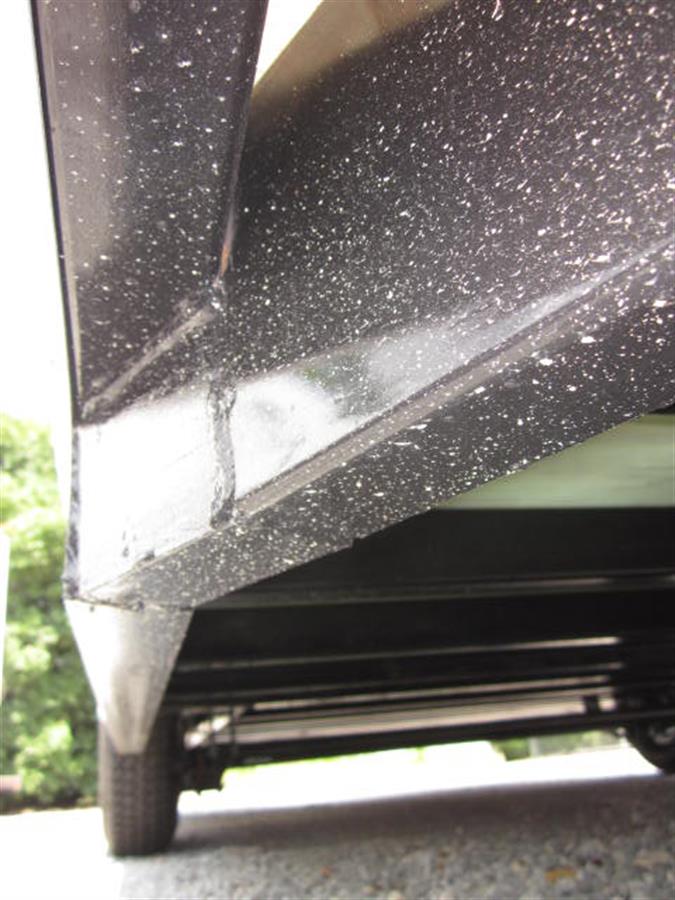

  • Rounded V-nose - much more aerodynamic and stable than sharp v-nose.  (Think of an airplane wing)
  • ONE PIECE ALUMINUM ROOF standard on 8.5' wide trailers
  • Layer of Thermacool installed between the roof and roof bows
  • RADIAL TIRES on all trailers

Arising is the ONLY maufacturer that we know of building a trailer like this.  If you see another similar constructed trailer from a dealer under a different name, chances are it is an Arising that someone decided to rebrand and call their own.

Arising Industries Enclosed Cargo Trailers

  Flat nose or sharp V-nose available at same price. The "V" is always extra space.
Pics may show optional equipment.
  All prices listed are for cash.

Prices do not include freight OR ANY POSSIBLE MATERIAL SURCHARGES.

Click on each picture for a larger view.
V-NOSE & RAMP DOOR ARE STANDARD
Base Models

Single Axle:
5 x 8
5 x 10
6 x 10
6 x 12
6 x 14
7 x 10
7 x 12

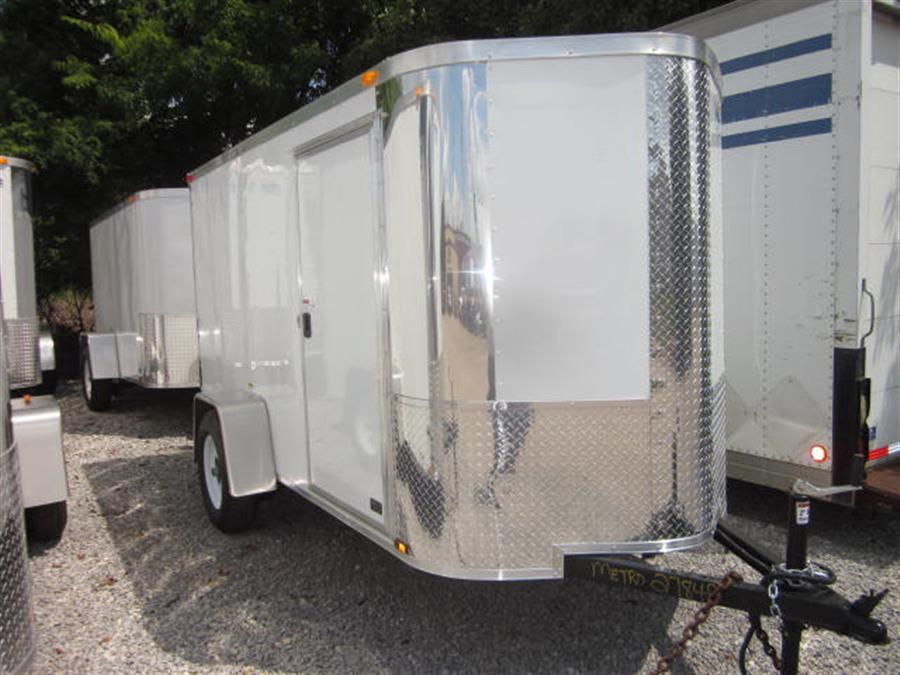

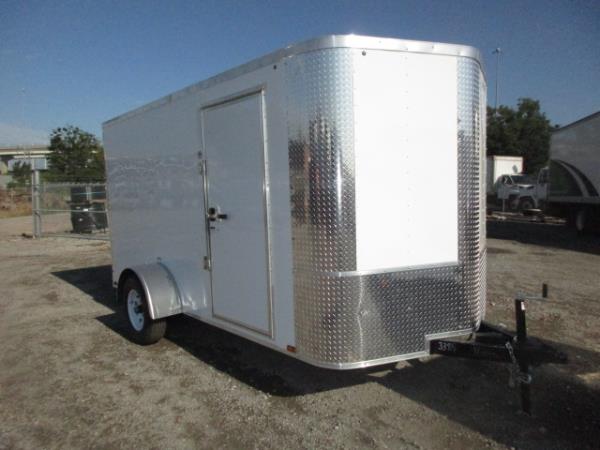

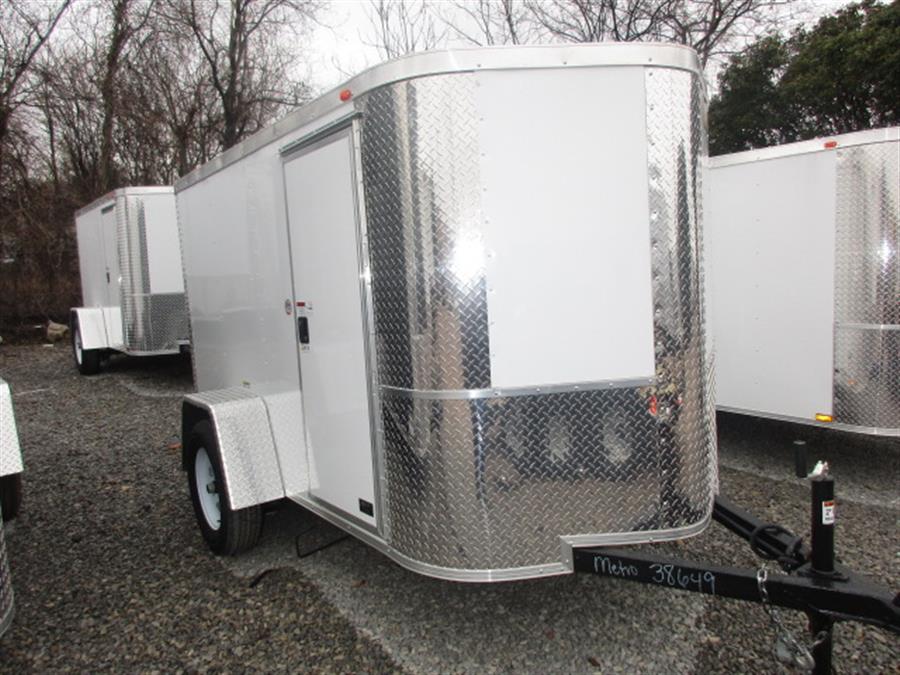

Arising 5x10

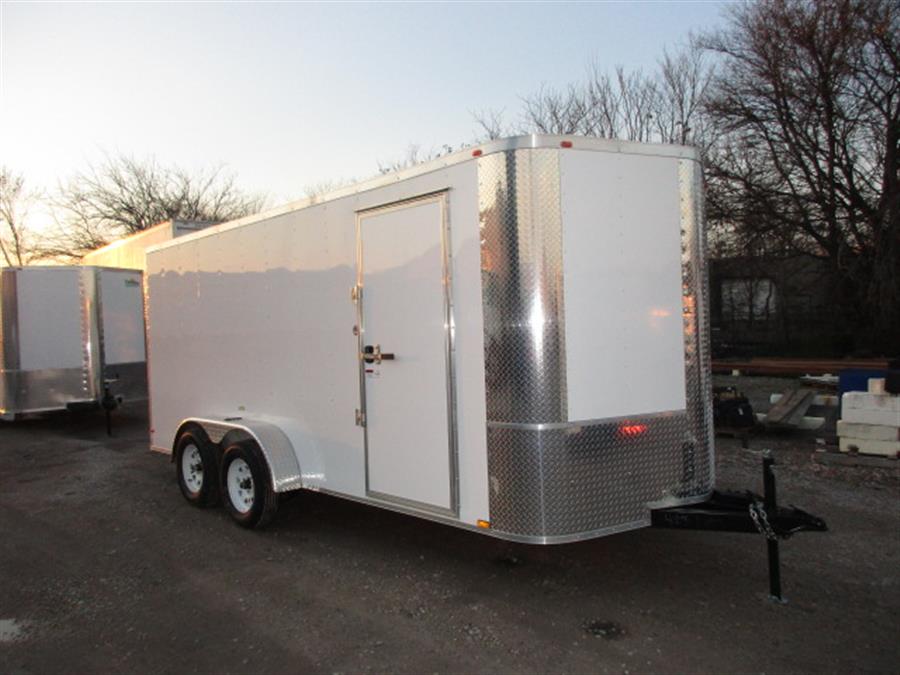

Arising 7x12

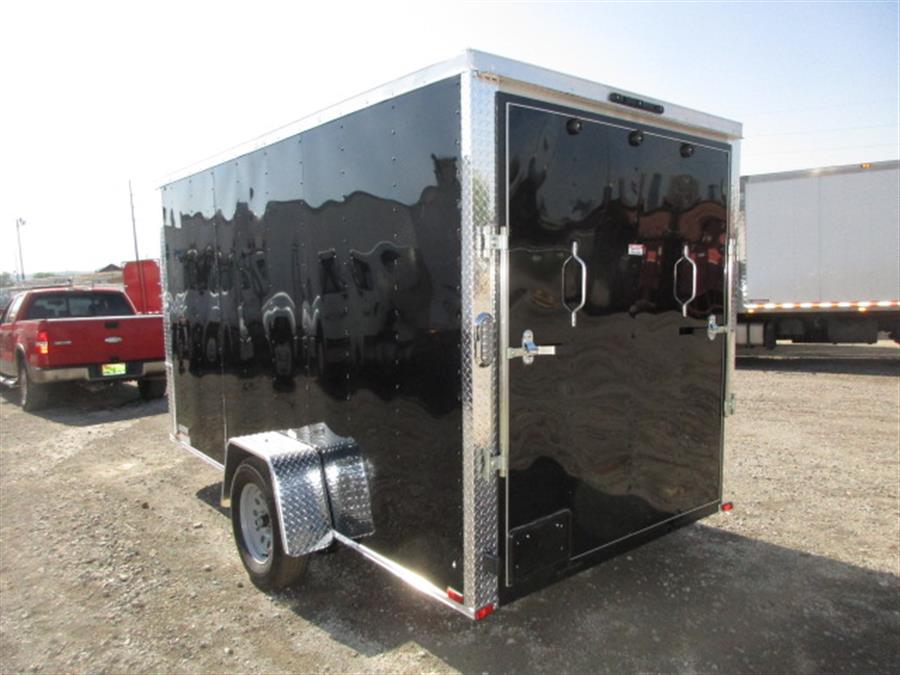

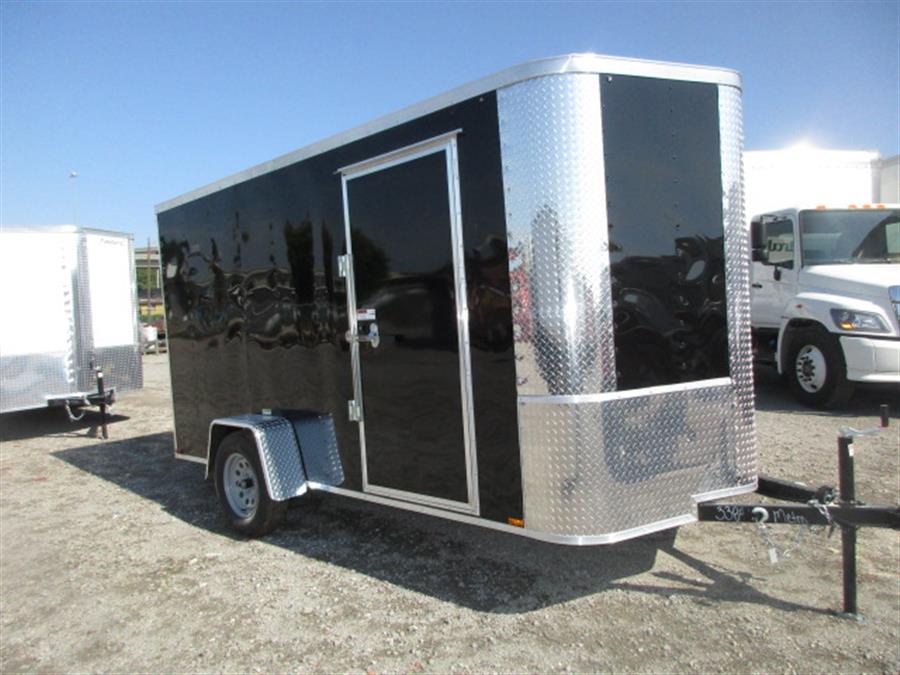

Arising 6x12 in black


Base Models

Tandem Axle:
6 x 10
6 x 12
6 x 14
6 x 16
7 x 10
7 x 12
7 x 14
7 x 16
7 x 18
7 x 20
7 x 24


Arising Industries Enclosed Car Trailers

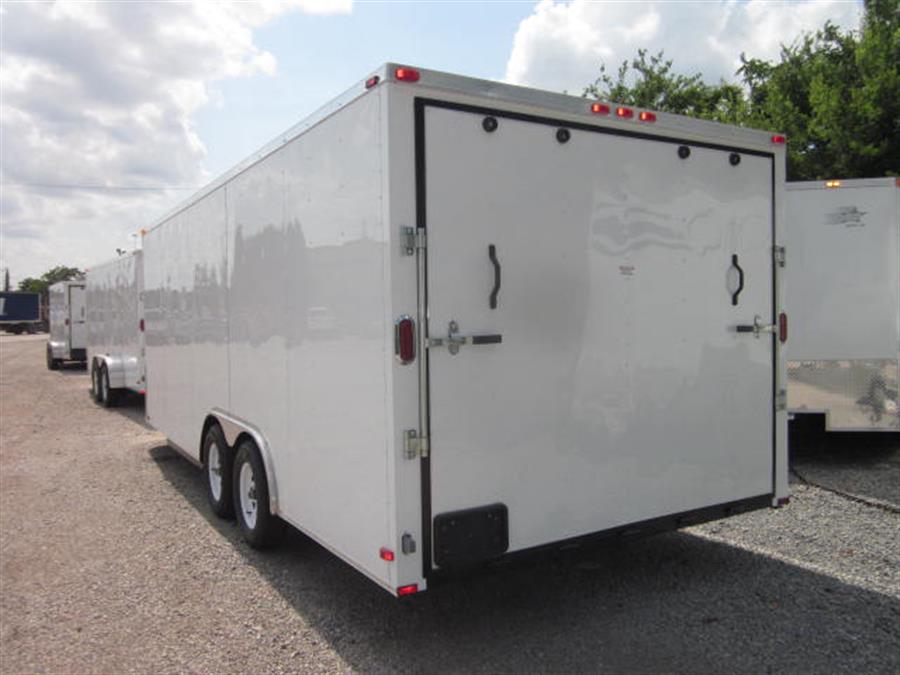

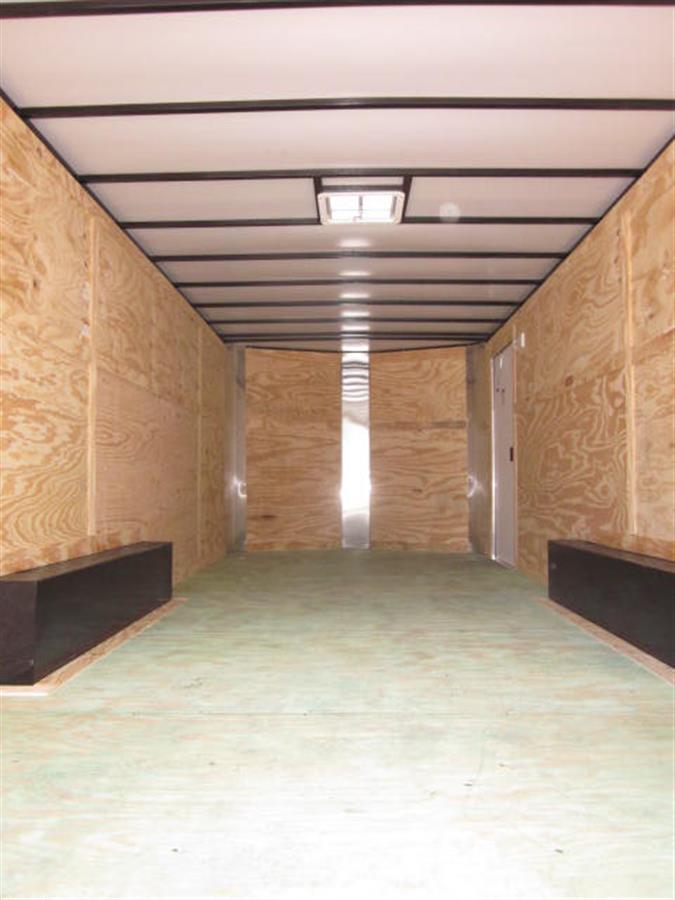

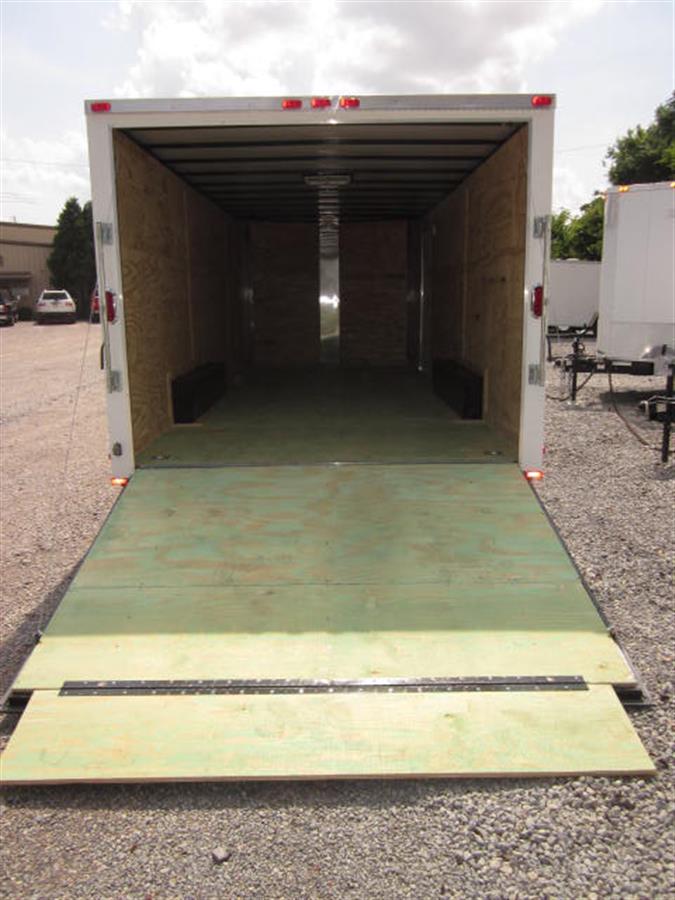

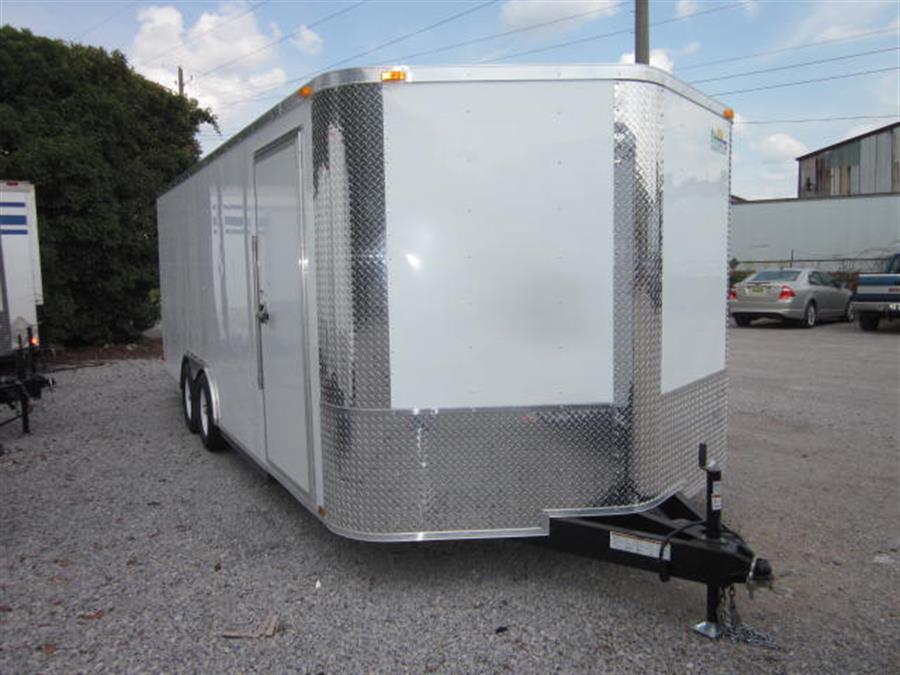

Click on each picture for a larger view. Pictured below is an 8.5 x 20.  Flat nose or sharp V-nose available at same price.  Pics may show optional equipment.
The "V" is always extra space. All prices listed are for cash. Prices do not include freight.
Base Models

14' 7k GVWR
16' 7k GVWR
20' 7k GVWR
24' 10k GVWR
28' 14k GVWR
30' 14k GVWR
32' 14k GVWR
34' 14k GVWR


  Base Model Specifications

Single Axle Trailer Standard Specifications:

  • 3500# American Made Axle (on models w/ electric brakes, non-brake models downrated to 2990# )

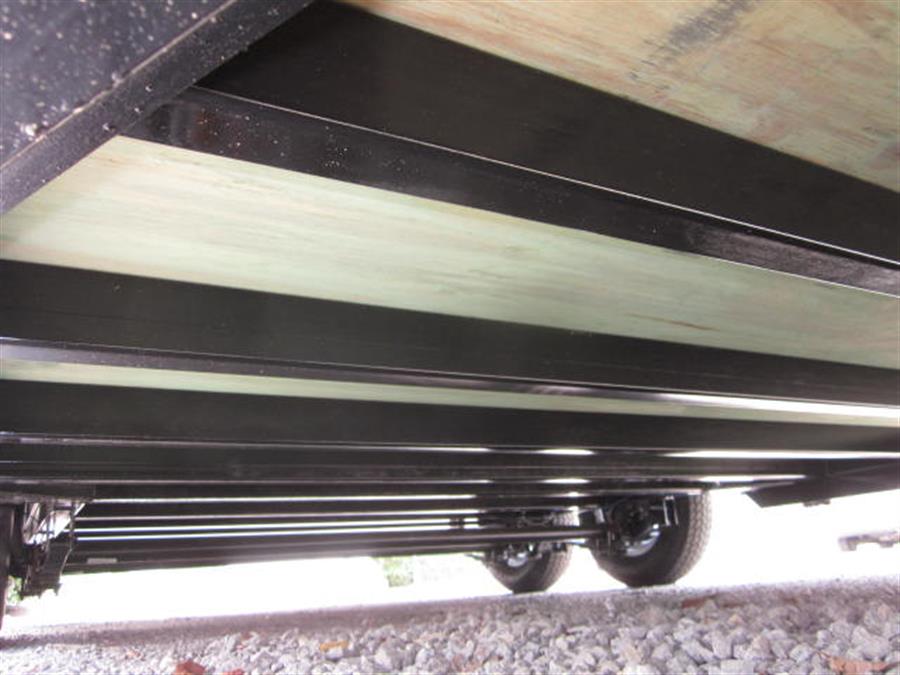

  • All Tubular Frame
  • Crush Resistant Front Wall Construction
  • Screwed or Semi-screwless Side Panels

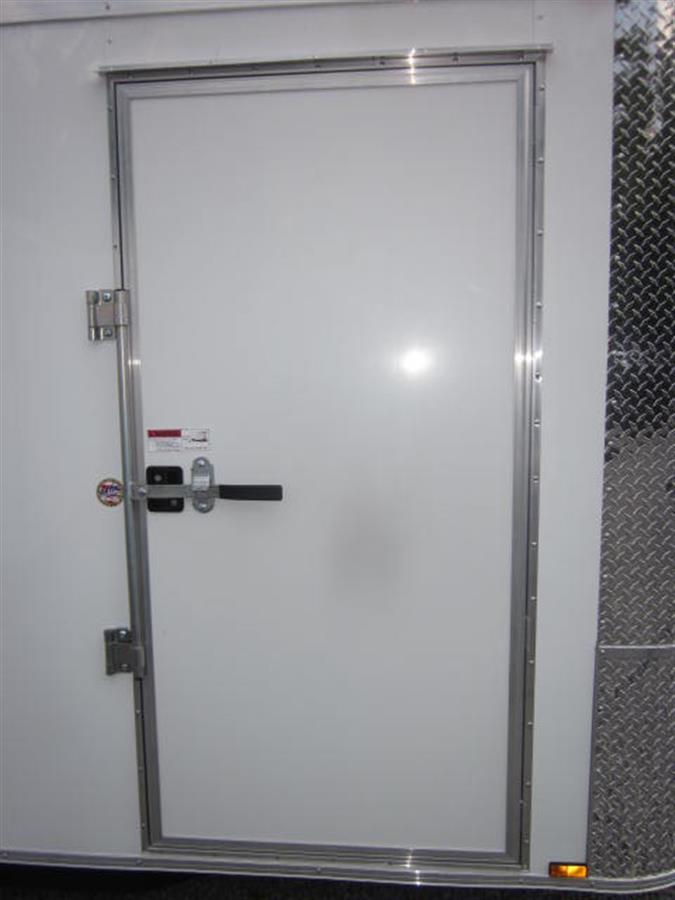

  • 32″ Solid Core Side Door with RV Latch and  Piano Hinge (6' wide and up)

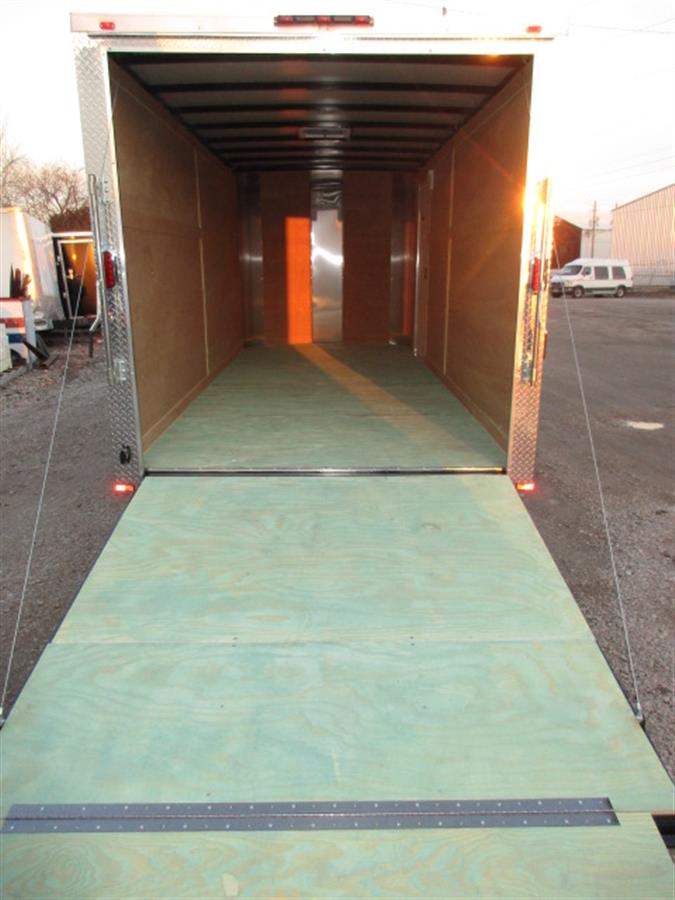

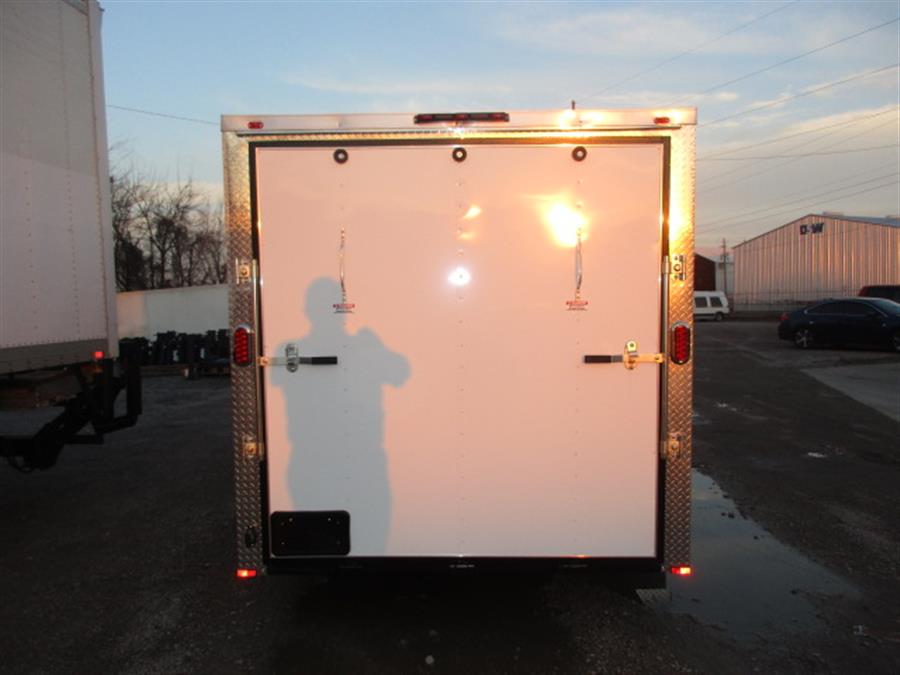

  • Rear Ramp with Spring Assist or Double Doors (8’6 Wide comes with Ramp Flap)
  • 3/4″ Plywood Floor 24″ centers
  • 3/8″ Plywood on Sidewalls 16″ Centers (24" Centers on 5' Wide)
  • 2″ Coupler
  • 2k Jack
  • Therma-cool Ceiling Liner
  • 12V  Interior  Light
  • 24″ Stoneguard (12" on 5' Wide)
  • 14 x 14 Roof Vent
  • Brace for A/C
  • LED Lights
  • V-nose is Standard (Rounded or Sharp V)
  • Flat Nose is a No Charge Option
  • White or Black Aluminum Exterior
  • Aluminum treadplate corners
  • Radial tires 6' wide and up

Tandem Axle Trailer Standard Specifications:

  • 2-3500# Electric Brake American Made Axles
  • All Tubular Frame
  • Crush Resistant Front Wall Construction
  • Screwed or Semi-Screwless Side Panels
  • 32″ Solid Core Side Door with RV Latch and Piano Hinge (6' wide and up)
  • Rear Ramp with Spring Assist or Double Doors (8’6 Wide comes with Ramp Flap)
  • 3/4″ Plywood Floor 16″ centers
  • 3/8″ Plywood on Sidewalls 16″ centers
  • 2 5/16″ Coupler
  • 2k Jack
  • Therma-cool Ceiling Liner
  • 12V  Interior Light
  • 24″ Stoneguard
  • 14 x 14 Roof Vent
  • Brace for A/C
  • LED Lights
  • V-nose is Standard (Rounded or Sharp V)
  • Flat nose is a No Charge Option
  • White or Black Aluminum Exterior
  • 8’6 Wide comes with 4 Flush D-ring Tie downs
  • Aluminum treadplate corners
  • Radial tires 6' wide and up
  • All 8'6" Wide comes with one piece aluminum roof
  • All 28' + includes 8" tube frame
